Zero Smog 4V
Back

Roll over and scroll on image to zoom

Zero Smog 4V

T0053660699N

Request Inquiry

Add To WishList

Aspiratore 230 V

Description

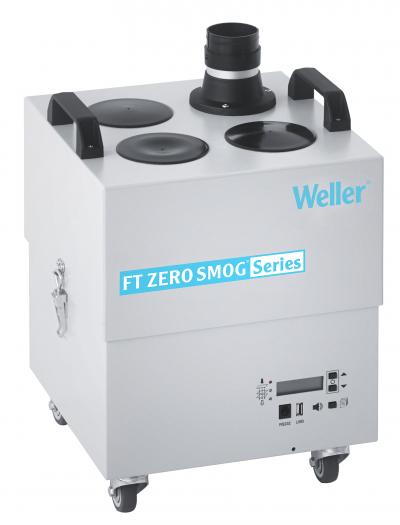

Fume extraction unit Zero Smog 4VUnit purifies air at up to 4 workplaces
Constant Flow Control (CFC) guarantees automatical air flow regulation for each working place independent of the connected workplaces
Electronic filter control with optical and acoustical filter alarm
Efficiency test via USB port
4 wheels to allow easy movement of the unit
Low noise level
4 kits available
The fume extraction unit Zero Smog 4V (ZS 4V) is easy to install and operate. It is designed for use as a small central system. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 230 m3/h. With setting constant flow control the adjustable turbine speed avoiding unnecessary waste of suction power and saving energy.

Technical Details

Pre filter: Pre filter mat class F7
Dimensions W x D x H (mm): 345 x 325 x 505
Dimensions W x D x H (inch): 13,58x12,79x19,88
Interface RS232 (Remote control): All system functions can be operated and remotely monitored via the RS232 port.
Heating output: 275 VA
Weight (ca) in kg: 19
Compact filter: Particle filter H13, Wide band gas filter (50 % active carbon + 50 % Chemisorb)
WX compatible: Yes
WT compatible: Yes
USB: The USB port can be used to load firmware updates, run efficiency tests and log data. Do not leave the USB medium inserted for longer than 2 minutes. After this time expires, the USB module will switch off automatically.
ESD-safe: Yes
Weight in g: 1-4 Arbeitsplätze
Length of cutting edges Inch: 2.7
